Main Studs for Mopar Aluminum block #2557126
10/01/18 04:53 PM
10/01/18 04:53 PM
Joined: May 2007
Posts: 552
Sac, CA, USA
N
ntstlgl1970 Offline OP
mopar
ntstlgl1970  Offline OP
mopar
N

Joined: May 2007
Posts: 552
Sac, CA, USA
Looking for specs on the main studs for the aluminum block. Thread pitch, length etc. specifically for the oil pump pickup stud. My engine came with studs, but has a stock bolt for the oil pump. I already talked to ARP and they said their stud is not long enough to fully engage the all the threads on the aluminum block. I also talked to Arrow/Prefix and they did not respond to my repeated emails and questions. Looking for specs to find another stud from another engine maybe? LS etc. ?!?

My motor is at the machine shop and this is holding it up....

Thanks

Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2557798
10/02/18 05:33 PM
10/02/18 05:33 PM
Joined: Jun 2003
Posts: 9,170
Charleston
S
sixpackgut Offline
Drag Week Mod Champion
sixpackgut  Offline
Drag Week Mod Champion
S

Joined: Jun 2003
Posts: 9,170
Charleston
shruggy


Gen 3 power 6.22@110, 9.85@135
Follow @g3hemiswap on instagram

performance only racing, CRT, ultimate converter, superior design concepts, ThumperCarbs
Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2558049
10/03/18 12:20 AM
10/03/18 12:20 AM
Joined: May 2007
Posts: 552
Sac, CA, USA
N
ntstlgl1970 Offline OP
mopar
ntstlgl1970  Offline OP
mopar
N

Joined: May 2007
Posts: 552
Sac, CA, USA
Cool, thank you. I’ll try calling him tomorrow.

Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2558052
10/03/18 12:30 AM
10/03/18 12:30 AM
Joined: Jan 2012
Posts: 1,198
North America
H
hudsonhornet7x Offline
super stock
hudsonhornet7x  Offline
super stock
H

Joined: Jan 2012
Posts: 1,198
North America
Unless I am mistaken his name is Rick Talbot.

Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2558695
10/04/18 12:39 AM
10/04/18 12:39 AM
Joined: Dec 2006
Posts: 115
Loganville, GA
S
Stewart Offline
member
Stewart  Offline
member
S

Joined: Dec 2006
Posts: 115
Loganville, GA
I have the same problem. Do you have one of the Mclaren blocks? The studs have no name on them and are 7/16x20 on one end and 12x1.75 on the other. ARP doesn't have them but told me an AUF-6.000-1B is the pick-up stud. Could be the guy that told me that didn't know they were too short. I have never gotten a reply from Arrow/prefix.

Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2558816
10/04/18 11:14 AM
10/04/18 11:14 AM
Joined: Jun 2007
Posts: 2,381
NorCal
RylisPro Offline
top fuel
RylisPro  Offline
top fuel

Joined: Jun 2007
Posts: 2,381
NorCal
Hey Eric,

I emailed Prefix for you for the #3 main cap oil pick up stud,
waiting on their reply.


[IMG]https://i.imgbox.com/OFxZscZe.jpg[/IMG]
[IMG]https://i.imgbox.com/hUS4EVKz.gif[/IMG] /Drive
Instagram: @rylispro
YouTube:RylisPro
www.rylispro.com
925-214-9192
Tremec T56 Magnums & Quick Time bells
Billet Steel Flywheels
Prefix Performance
Re: Main Studs for Mopar Aluminum block [Re: hudsonhornet7x] #2560379
10/07/18 03:08 PM
10/07/18 03:08 PM
Joined: Jun 2003
Posts: 9,170
Charleston
S
sixpackgut Offline
Drag Week Mod Champion
sixpackgut  Offline
Drag Week Mod Champion
S

Joined: Jun 2003
Posts: 9,170
Charleston
Originally Posted By hudsonhornet7x
Unless I am mistaken his name is Rick Talbot.


Correct. I need to correct that in my phone


Gen 3 power 6.22@110, 9.85@135
Follow @g3hemiswap on instagram

performance only racing, CRT, ultimate converter, superior design concepts, ThumperCarbs
Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2561375
10/09/18 01:05 PM
10/09/18 01:05 PM
Joined: Jun 2007
Posts: 2,381
NorCal
RylisPro Offline
top fuel
RylisPro  Offline
top fuel

Joined: Jun 2007
Posts: 2,381
NorCal
Eric,

Dale Matthews emailed me back just now and they have the oil pick up stand off available. It goes on top of the main cap stud same as in my engine


What is your zipcode for shipping?

They are $13.21 email RylisPro@gmail.com to order

Thanks!


[IMG]https://i.imgbox.com/OFxZscZe.jpg[/IMG]
[IMG]https://i.imgbox.com/hUS4EVKz.gif[/IMG] /Drive
Instagram: @rylispro
YouTube:RylisPro
www.rylispro.com
925-214-9192
Tremec T56 Magnums & Quick Time bells
Billet Steel Flywheels
Prefix Performance
Re: Main Studs for Mopar Aluminum block [Re: RylisPro] #2561490
10/09/18 05:03 PM
10/09/18 05:03 PM
Joined: Jun 2003
Posts: 9,170
Charleston
S
sixpackgut Offline
Drag Week Mod Champion
sixpackgut  Offline
Drag Week Mod Champion
S

Joined: Jun 2003
Posts: 9,170
Charleston
Originally Posted By RylisPro
Eric,

Dale Matthews emailed me back just now and they have the oil pick up stand off available. It goes on top of the main cap stud same as in my engine


What is your zipcode for shipping?

They are $13.21 email RylisPro@gmail.com to order

Thanks!


Just sent you $30. Send me 2 of them


Gen 3 power 6.22@110, 9.85@135
Follow @g3hemiswap on instagram

performance only racing, CRT, ultimate converter, superior design concepts, ThumperCarbs
Re: Main Studs for Mopar Aluminum block [Re: sixpackgut] #2561562
10/09/18 07:40 PM
10/09/18 07:40 PM
Joined: Jun 2007
Posts: 2,381
NorCal
RylisPro Offline
top fuel
RylisPro  Offline
top fuel

Joined: Jun 2007
Posts: 2,381
NorCal
Hey Eric & Ray,
I emailed Prefix on shipping quotes for your respective address. Will get a reply from them tomorrow.

If anyone else needs parts from Prefix email us your shipping address at RylisPro@gmail.com for a quote.

Thanks!


[IMG]https://i.imgbox.com/OFxZscZe.jpg[/IMG]
[IMG]https://i.imgbox.com/hUS4EVKz.gif[/IMG] /Drive
Instagram: @rylispro
YouTube:RylisPro
www.rylispro.com
925-214-9192
Tremec T56 Magnums & Quick Time bells
Billet Steel Flywheels
Prefix Performance
Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2561714
10/10/18 12:44 AM
10/10/18 12:44 AM
Joined: Dec 2006
Posts: 115
Loganville, GA
S
Stewart Offline
member
Stewart  Offline
member
S

Joined: Dec 2006
Posts: 115
Loganville, GA
Are the studs available and are they 12x1.75 by 7/16x20 and are the standoffs 7/16 where they fit the stud?

Re: Main Studs for Mopar Aluminum block [Re: Stewart] #2561739
10/10/18 01:35 AM
10/10/18 01:35 AM
Joined: Jun 2007
Posts: 2,381
NorCal
RylisPro Offline
top fuel
RylisPro  Offline
top fuel

Joined: Jun 2007
Posts: 2,381
NorCal
I'm not sure if the aluminum block main studs are available separately from the block?

The #2, #3 and #4 main caps utilize a vertical 4 bolt mounting structure for added strength. All of the 5 main caps utilize the production cross bolts.
J 80-01-0001 M8 X 1.25 X 35 HEX FLANGE HD qty. of 10

Also the main studs and caps are a unique size for the aluminum 6.1 block casting. These will NOT fit any production cast iron cylinder block. I am pretty sure the 16 main studs and part numbers are:

H 80-03-0002 STUD - 7/16 BOTH ENDS - SHORT qty. of 6
G 80-03-0001 STUD - 7/16 BOTH ENDS - LONG qty. of 10

on the instructions .pdf and will have to email Prefix to confirm.


[IMG]https://i.imgbox.com/OFxZscZe.jpg[/IMG]
[IMG]https://i.imgbox.com/hUS4EVKz.gif[/IMG] /Drive
Instagram: @rylispro
YouTube:RylisPro
www.rylispro.com
925-214-9192
Tremec T56 Magnums & Quick Time bells
Billet Steel Flywheels
Prefix Performance
Re: Main Studs for Mopar Aluminum block [Re: RylisPro] #2561748
10/10/18 02:02 AM
10/10/18 02:02 AM
Joined: Jun 2007
Posts: 2,381
NorCal
RylisPro Offline
top fuel
RylisPro  Offline
top fuel

Joined: Jun 2007
Posts: 2,381
NorCal
Here are some cool schematics on the 6.1 aluminum block if anyone needs them.
Pay attention to the torque sequence for the main studs and cross bolts along with the increasing torque per fastener.




[IMG]https://i.imgbox.com/OFxZscZe.jpg[/IMG]
[IMG]https://i.imgbox.com/hUS4EVKz.gif[/IMG] /Drive
Instagram: @rylispro
YouTube:RylisPro
www.rylispro.com
925-214-9192
Tremec T56 Magnums & Quick Time bells
Billet Steel Flywheels
Prefix Performance
Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2562217
10/11/18 12:02 AM
10/11/18 12:02 AM
Joined: Dec 2006
Posts: 115
Loganville, GA
S
Stewart Offline
member
Stewart  Offline
member
S

Joined: Dec 2006
Posts: 115
Loganville, GA
My blocks are different. I have 4 bolts + side bolts on all 5 caps with one end metric and 1 end Std.

Re: Main Studs for Mopar Aluminum block [Re: Stewart] #2562284
10/11/18 02:26 AM
10/11/18 02:26 AM
Joined: Jun 2007
Posts: 2,381
NorCal
RylisPro Offline
top fuel
RylisPro  Offline
top fuel

Joined: Jun 2007
Posts: 2,381
NorCal
Hey Stewart,
You have a couple of McLaren blocks don't you? Those are different than the 6.1 Gen 3 aluminum blocks obviously.

If your main cap studs have the metric ends that go into the block and the 7/16 end that holds down the main cap, I'm thinking that the oil pick up stand off may work if you modify it with a 7/16-20 fine thread helicoil maybe?

Unfortunately the main studs on our 6.1 aluminum block looks like they are 7/16-14 coarse thread.

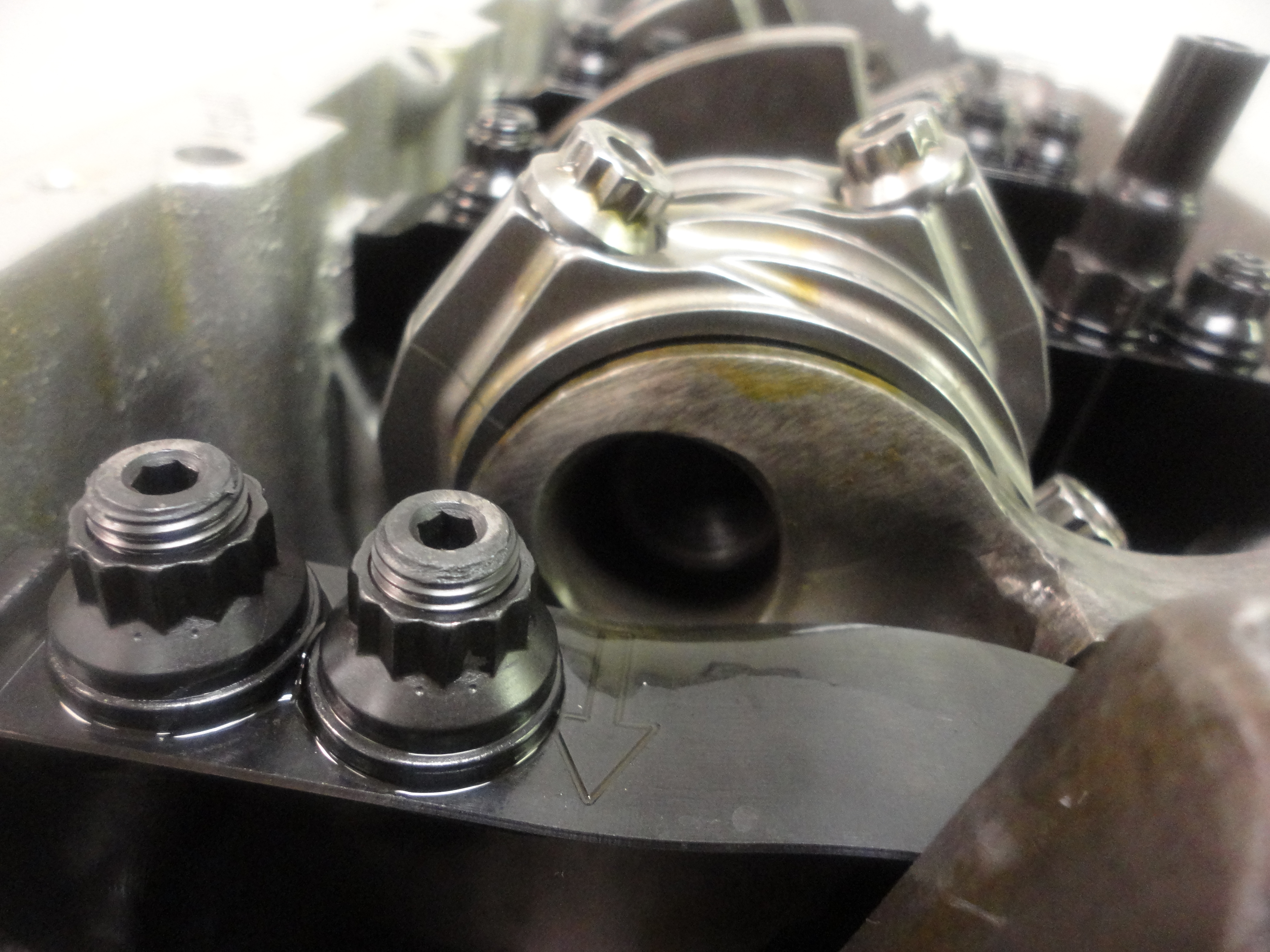

There is no way that is a fine thread. You can see the oil pick up stand off in the background.

I had forgotten to email Prefix until the last minute today haha I'm still out of town.
Awaiting their reply.


[IMG]https://i.imgbox.com/OFxZscZe.jpg[/IMG]
[IMG]https://i.imgbox.com/hUS4EVKz.gif[/IMG] /Drive
Instagram: @rylispro
YouTube:RylisPro
www.rylispro.com
925-214-9192
Tremec T56 Magnums & Quick Time bells
Billet Steel Flywheels
Prefix Performance
Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2562313
10/11/18 06:33 AM
10/11/18 06:33 AM
Joined: Jan 2006
Posts: 1,376
Trumbauersville PA
ric3xrt Offline
pro stock
ric3xrt  Offline
pro stock

Joined: Jan 2006
Posts: 1,376
Trumbauersville PA
might want to look in to these , won't help with the pick up tube.
ARP Chevrolet Small Block LS/WP Warhawk LS aluminum block
Kit #:134-5802

Last edited by ric3xrt; 10/11/18 06:34 AM.

Truth has no agenda, but those with an agenda make their own truth.
Some of us are so open minded they only see their View



Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2562373
10/11/18 12:01 PM
10/11/18 12:01 PM
Joined: Jun 2007
Posts: 2,381
NorCal
RylisPro Offline
top fuel
RylisPro  Offline
top fuel

Joined: Jun 2007
Posts: 2,381
NorCal
Hey Eric,

Prefix got back to me they have the main stud in hand which looks to be like a 7/16-14 coarse thread on both ends. I had asked for the specs but they didn't respond with detailed info?

They are $10 bucks each and I had them ship one to you via the cheapest way possible. I'll send you an invoice but don't worry about it right now. I would rather have you pay me in person at the Spring Fling Speed Festival at Big Willow in April 2019 haha!

If anyone else needs one please email us your zipcode.
Thanks!


[IMG]https://i.imgbox.com/OFxZscZe.jpg[/IMG]
[IMG]https://i.imgbox.com/hUS4EVKz.gif[/IMG] /Drive
Instagram: @rylispro
YouTube:RylisPro
www.rylispro.com
925-214-9192
Tremec T56 Magnums & Quick Time bells
Billet Steel Flywheels
Prefix Performance
Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2562460
10/11/18 02:54 PM
10/11/18 02:54 PM
Joined: Dec 2005
Posts: 1,462
Mrytle Beach SC
J
johnscudashop Offline
pro stock
johnscudashop  Offline
pro stock
J

Joined: Dec 2005
Posts: 1,462
Mrytle Beach SC
I wish Arrow had these avail back in 2010 when I bought my Aluminum crate hemi.. I ended up making some stand offs for mine.. One thing I noticed. When I saw sixpackgut (Ray's) block the other day, I only saw 3 or 4 threads sticking out above the stud nut. I remember mine had alot more Threads above the main cap nut

Re: Main Studs for Mopar Aluminum block [Re: RylisPro] #2562465
10/11/18 03:38 PM
10/11/18 03:38 PM
Joined: Jun 2007
Posts: 2,381
NorCal
RylisPro Offline
top fuel
RylisPro  Offline
top fuel

Joined: Jun 2007
Posts: 2,381
NorCal
Here is the part number and specs on the invoice for the main stud that got sent out to ntstlgl1970

Part # 80-03-0001
STUD; MJ12X.4375X4.452 190 4340, 190 KSI MIN, BLACK OXIDE FINISH. STUD-MAIN CAP LONG


[IMG]https://i.imgbox.com/OFxZscZe.jpg[/IMG]
[IMG]https://i.imgbox.com/hUS4EVKz.gif[/IMG] /Drive
Instagram: @rylispro
YouTube:RylisPro
www.rylispro.com
925-214-9192
Tremec T56 Magnums & Quick Time bells
Billet Steel Flywheels
Prefix Performance
Re: Main Studs for Mopar Aluminum block [Re: ntstlgl1970] #2562520
10/11/18 05:50 PM
10/11/18 05:50 PM
Joined: Dec 2006
Posts: 115
Loganville, GA
S
Stewart Offline
member
Stewart  Offline
member
S

Joined: Dec 2006
Posts: 115
Loganville, GA
Don't know what I was thinking when I said all 5 caps were 4 bolt, only 2,3 and 4. No wait, it was not me. I was hacked, ya thats what happened, I would never make that mistake. Think i will order the pickup stud from the 5.7 ARP kit and see I can get it to work it works.

PS. It was me.

Page 1 of 2 1 2

Advertisement
Moparts Newest Topics
Cam Lobe Wear Pattern
by GTX MATT. 06/25/19 12:23 AM
AMD dealer recommendations
by held1823. 06/25/19 12:19 AM
'75 Duster @ all american classics in WA
by Satilite73. 06/24/19 11:24 PM
dead dakota
by rhad. 06/24/19 11:23 PM
USA made brake cylinders???
by fullmetaljacket. 06/24/19 10:50 PM
Moparts Recent Posts
Late model muscle car insurance rates ?
by Sunroofcuda. 06/25/19 12:31 AM
Cam Lobe Wear Pattern
by GTX MATT. 06/25/19 12:27 AM
My first outing with my Cuda 410” stroker.
by usp4u. 06/25/19 12:25 AM
Any general HP street trix for a 3.6 V6 ?
by Doc Fiberglass. 06/25/19 12:22 AM
AMD dealer recommendations
by held1823. 06/25/19 12:19 AM
1974 Plymouth Duster - $21950 (Des moines)
by Doc Fiberglass. 06/25/19 12:14 AM

Powered by UBB.threads™ PHP Forum Software 7.7.1
