Re: Engine run test stands [Re: Uncle Barry] #2449306
02/09/18 10:03 PM
02/09/18 10:03 PM
Joined: Jan 2003
Posts: 1,575
CT
M
mrrandyj Offline
pro stock
mrrandyj  Offline
pro stock
M

Joined: Jan 2003
Posts: 1,575
CT
I made brackets that sit on the legs of a engine hoist (cherry picker). Space is a premium in my garage, and I didn't want to have to store something else that took up a lot of room and was hard to move around. The 2 brackets I made take up very little space, and are not heavy at all. All the steel was scrap I had laying around, so it cost me nothing except a little time to make it. I also made a switch panel and wiring with a spare Chrysler electronic ignition box I had that attaches to the hoist with 2 bolts when I use it as a "run stand". Same with oil pressure and temperature gauges. I have used this several times and it works great and it's very easy to set up. Works with both small blocks and big blocks.

Re: Engine run test stands [Re: mrrandyj] #2449310
02/09/18 10:16 PM
02/09/18 10:16 PM
Joined: Nov 2003
Posts: 36,041
Lincoln Nebraska
R
RapidRobert Offline
Circle Track
RapidRobert  Offline
Circle Track
R

Joined: Nov 2003
Posts: 36,041
Lincoln Nebraska
^^^ Trick! I like that.


live every 24 hour block of time like it's your last day on earth
Re: Engine run test stands [Re: Uncle Barry] #2449312
02/09/18 10:18 PM
02/09/18 10:18 PM
Joined: Jan 2003
Posts: 3,575
The Netherlands
BigBlockMopar Offline
master
BigBlockMopar  Offline
master

Joined: Jan 2003
Posts: 3,575
The Netherlands
You can cut down a torque convertor to use the ringgear only.
I wouldn't use a complete torqueconvertor for balancing reasons. The insides won't be held centered because there's no transmission input shaft.

I mounted a neutral flywheel against the B&M balanced flexplate and used slightly longer bolts into the crank flange.


I build mine from a spare cart and some scrap metal.

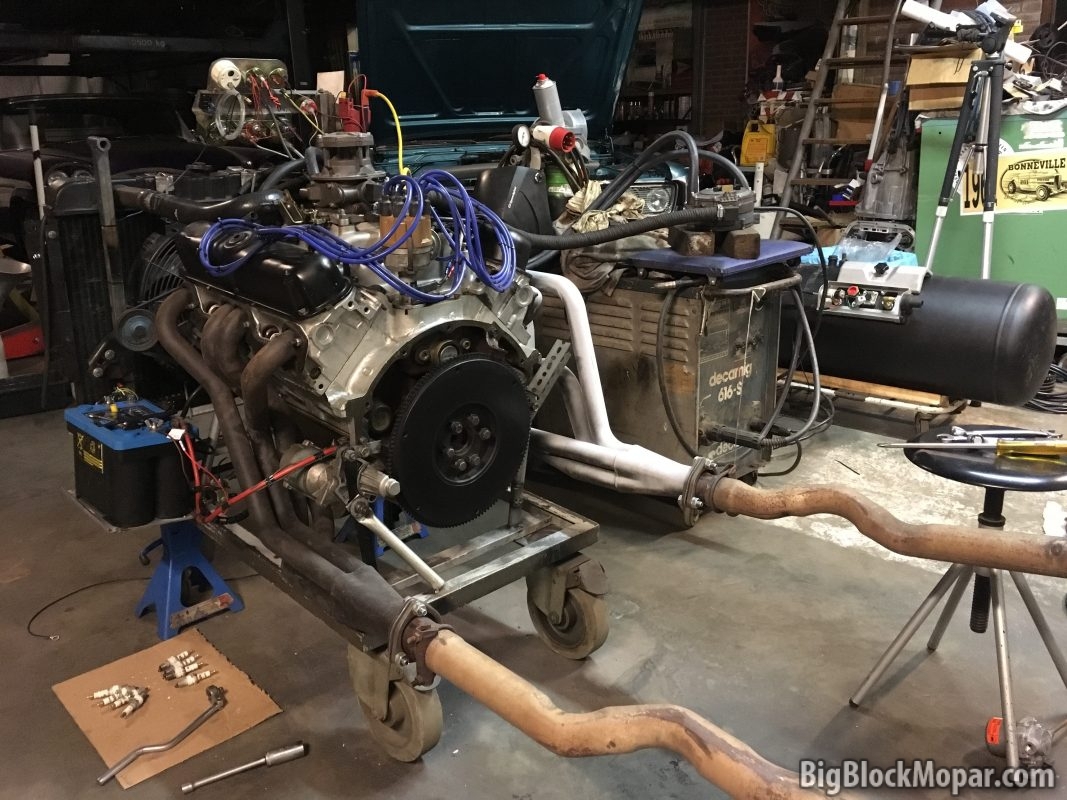

Here it is with a 360ci Small Block installed;






Re: Engine run test stands [Re: pittsburghracer] #2449462
02/10/18 11:28 AM
02/10/18 11:28 AM
Joined: Oct 2007
Posts: 1,070
Big Western Pencilveinya
U
Uncle Barry Offline OP
super stock
Uncle Barry  Offline OP
super stock
U

Joined: Oct 2007
Posts: 1,070
Big Western Pencilveinya
Originally Posted By pittsburghracer
Originally Posted By Uncle Barry
Has anyone ever bought one of these from the Walmart site? https://www.walmart.com/ip/Mobile-Engine-Testing-Station



Barry I bought some plans and started building my own because I didn't want to buy a cheap piece of crap and bandaid it to make it stronger. Mine is about 80% finished, bought gauges, and I bought a fixture off a Moparts member to mount a starter on a big block. I think I have it sold as I have been trying to clean-up some but if the deal falls through I can let you know if you are interested. It is made to fold up so you can lean it against the wall if you want to.


New engine breakin bench 003 by John Cadamore, on Flickr

engine stand 001 by John Cadamore, on Flickr


engine stand 002 by John Cadamore, on Flickr
let me know John. Terry and I are looking for something like this.

Re: Engine run test stands [Re: Uncle Barry] #2449466
02/10/18 11:31 AM
02/10/18 11:31 AM
Joined: Oct 2007
Posts: 1,070
Big Western Pencilveinya
U
Uncle Barry Offline OP
super stock
Uncle Barry  Offline OP
super stock
U

Joined: Oct 2007
Posts: 1,070
Big Western Pencilveinya
You folks are really creative and have great fabrication skills that's for sure!

Re: Engine run test stands [Re: mrrandyj] #2449551
02/10/18 02:24 PM
02/10/18 02:24 PM
Joined: Jan 2003
Posts: 1,358
Oregon
E
earlymopar Offline
pro stock
earlymopar  Offline
pro stock
E

Joined: Jan 2003
Posts: 1,358
Oregon
If you were so inclined, I'd suggest you have a sellable product with that.

- EM

Re: Engine run test stands [Re: Uncle Barry] #2449614
02/10/18 04:12 PM
02/10/18 04:12 PM
Joined: Jan 2003
Posts: 8,105
Tulsa OK
Bad340fish Offline
master
Bad340fish  Offline
master

Joined: Jan 2003
Posts: 8,105
Tulsa OK
The cherry picker mounted one is very clever, good work.


68 Barracuda Formula S 340
Re: Engine run test stands [Re: Bad340fish] #2450431
02/11/18 11:29 PM
02/11/18 11:29 PM
Joined: Feb 2003
Posts: 999
Addison,IL
OUTLAWSSAA Offline
super stock
OUTLAWSSAA  Offline
super stock

Joined: Feb 2003
Posts: 999
Addison,IL




Re: Engine run test stands [Re: Uncle Barry] #2450623
02/12/18 11:57 AM
02/12/18 11:57 AM
Joined: Jan 2003
Posts: 13,561
Marion, South Carolina [><]
an8sec70cuda Offline
I Live Here
an8sec70cuda  Offline
I Live Here

Joined: Jan 2003
Posts: 13,561
Marion, South Carolina [><]
Yall would laugh if you saw mine, lol. When I said we built it out of scrap, that's exactly what it is...pieces from an old combine, etc. lol


CHIP
'70 hemicuda, 575" Hemi, 727, Dana 60
'69 road runner, 440-6, 4 speed, Dana 60
'71 Demon 340, no drivetrain, on blocks behind the barn
'73 Chrysler New Yorker, 440, 727, 8.75
'90 Chevy 454SS Silverado, 476" BBC, TH400, 14 bolt
'06 GMC 2500HD LBZ Duramax
Re: Engine run test stands [Re: mrrandyj] #2450629
02/12/18 12:04 PM
02/12/18 12:04 PM
Joined: Oct 2006
Posts: 248
Cranberry Twp PA (North of Pit...
rumblefish72 Offline
enthusiast
rumblefish72  Offline
enthusiast

Joined: Oct 2006
Posts: 248
Cranberry Twp PA (North of Pit...
Originally Posted By mrrandyj
I made brackets that sit on the legs of a engine hoist (cherry picker). Space is a premium in my garage, and I didn't want to have to store something else that took up a lot of room and was hard to move around. The 2 brackets I made take up very little space, and are not heavy at all. All the steel was scrap I had laying around, so it cost me nothing except a little time to make it. I also made a switch panel and wiring with a spare Chrysler electronic ignition box I had that attaches to the hoist with 2 bolts when I use it as a "run stand". Same with oil pressure and temperature gauges. I have used this several times and it works great and it's very easy to set up. Works with both small blocks and big blocks.


Now that's a great idea ... I already have the folding engine crane ... just need to make some mounting brackets!


1972 Pro-Street 'Cuda, 500" Eagle stoker B Block, Eddy RPM heads, Victor Manifold, 850 Mighty Demon, Hemi 4 Speed, Dana 60 w/4.88 gears - Built by Hansen Racing Middlesex - NJ
Re: Engine run test stands [Re: an8sec70cuda] #2450632
02/12/18 12:13 PM
02/12/18 12:13 PM
Joined: Nov 2003
Posts: 36,041
Lincoln Nebraska
R
RapidRobert Offline
Circle Track
RapidRobert  Offline
Circle Track
R

Joined: Nov 2003
Posts: 36,041
Lincoln Nebraska
Quote:
Yall would laugh if you saw mine, lol.
Lets have a look, pics please! On a side note someone mentioned loading the eng, I'm wondering if you build one with a functioning 727 behind it is there a way to load the eng to help with ring seating? here is a good read on this: go to www.mototuneusa.com then scroll down & click on "breakin secrets". their take is that you get ONE shot to get an excellent ring sealthat will give good leakdown numbers as opposed to a "good" or "so so" ring seal & the gist of it is to load the eng repeatedly by goosing the throttle during the breakin. Andy I like your that stand is more open in the back cuz I need more access to that area & my next one will be able to be rotated for sure.


live every 24 hour block of time like it's your last day on earth
Re: Engine run test stands [Re: OUTLAWSSAA] #2450634
02/12/18 12:14 PM
02/12/18 12:14 PM
Joined: Apr 2003
Posts: 3,574
Tulsa, Oklahoma
340Cuda Offline
master
340Cuda  Offline
master

Joined: Apr 2003
Posts: 3,574
Tulsa, Oklahoma
OUTLAWSSAA,

Are you just using the transmission as a bellhousing with a flywheel or do you have a pump and a converter in there?

Thanks,
Bill

Re: Engine run test stands [Re: ScottSmith_Harms] #2450916
02/12/18 09:12 PM
02/12/18 09:12 PM
Joined: Oct 2007
Posts: 480
templeton,ma
C
coro500net Offline
mopar
coro500net  Offline
mopar
C

Joined: Oct 2007
Posts: 480
templeton,ma
Been using that Walmart test stand for a few years,works fine. Had to do some minor mods to the stand for the block motor mount hook up.

Re: Engine run test stands [Re: Uncle Barry] #2450920
02/12/18 09:20 PM
02/12/18 09:20 PM
Joined: Jun 2014
Posts: 5,183
P
Porter67 Offline
master
Porter67  Offline
master
P

Joined: Jun 2014
Posts: 5,183
I need to take a pick of my fugly deal, I bent the ramps I load my bobcat with so I cut one in half and each part got a motor mount and a rad across the front.

I cut the other ramp in half, drilled holes for the trans tail mount and thats that.

Like a fat chick or a honda 50.
