How to attach motor plate to car
#2255517
02/18/17 03:40 PM
02/18/17 03:40 PM
|
Joined: Mar 2009
Posts: 1,169 Virginia Beach, VA
Old School
OP
super stock
|
OP
super stock
Joined: Mar 2009
Posts: 1,169
Virginia Beach, VA
|
Getting ready to install my motor in my 68 Cuda. The car is already painted so I don't want to have to weld the L brackets in. Going to need to bolt them in. Any ideas as the best way to do this?
I was thinking of using a small hole saw to cut the bottom of the frame. Then grab the top frame with some grade 8 hardware and thick washers.....
Also do they make a stud kit that has the Allen head on the end, that screws into the block that the plate can slide on?
Last edited by Old School; 02/18/17 05:19 PM.
68 cuda formula S 588" bb 5sp 70 CUDA CONVERT 500" 5SP (SUBLIME) 70 CUDA CONVERT 500" 5SP (PLUMCRAZY):TOO MUCH HORSEPOWER, IS ALMOST ENOUGH!
|
|
|
Re: How to attach motor plate to car
[Re: AndyF]
#2255612
02/18/17 08:00 PM
02/18/17 08:00 PM
|
Joined: May 2011
Posts: 4,489 northern,Ohio,USA
Clanton
master
|
master
Joined: May 2011
Posts: 4,489
northern,Ohio,USA
|
If it was me I'd use Rivnuts in the top frame rail. You can install Rivnuts after paint. Put a couple of Rivnuts in each rail and then bolt the L bracket to the Rivnuts and bolt the motor plate to the L bracket. I think the frame meets the firewall and limits room for the tool for rivnuts dosen't it?
|
|
|
Re: How to attach motor plate to car
[Re: Clanton]
#2255624
02/18/17 08:15 PM
02/18/17 08:15 PM
|
Joined: Mar 2009
Posts: 1,169 Virginia Beach, VA
Old School
OP
super stock
|
OP
super stock
Joined: Mar 2009
Posts: 1,169
Virginia Beach, VA
|
Is there any chance that a rivnut can get pulled back out? Also does the rivnut set flat to the frame rail, so that the L bracket sets flush with the frame?
68 cuda formula S 588" bb 5sp 70 CUDA CONVERT 500" 5SP (SUBLIME) 70 CUDA CONVERT 500" 5SP (PLUMCRAZY):TOO MUCH HORSEPOWER, IS ALMOST ENOUGH!
|
|
|
Re: How to attach motor plate to car
[Re: J_BODY]
#2255657
02/18/17 09:38 PM
02/18/17 09:38 PM
|
Joined: Aug 2003
Posts: 1,578
KOS
pro stock
|
pro stock
Joined: Aug 2003
Posts: 1,578
|
I did as Andy suggested. makes it a breeze to install. any pix??
|
|
|
Re: How to attach motor plate to car
[Re: Old School]
#2255688
02/18/17 10:48 PM
02/18/17 10:48 PM
|
Joined: Jan 2003
Posts: 31,061 Oregon
AndyF
I Win
|
I Win
Joined: Jan 2003
Posts: 31,061
Oregon
|
Is there any chance that a rivnut can get pulled back out? Also does the rivnut set flat to the frame rail, so that the L bracket sets flush with the frame? The Rivnut has a flange on it so the bracket will sit on the flange. The flange isn't very thick, maybe 0.060 or so depending on the type of Rivnut. A Rivnut can be pulled out but it would take a bunch of force. It isn't going to come out of there under any normal situations. If you run the car into a concrete wall at 150 mph the engine might yank the Rivnuts loose but anything short of that shouldn't pull them out.
|
|
|
Re: How to attach motor plate to car
[Re: Old School]
#2255701
02/18/17 11:16 PM
02/18/17 11:16 PM
|
Joined: Sep 2005
Posts: 623 Deep DEEP SOUTH
LAD 524
mopar
|
mopar
Joined: Sep 2005
Posts: 623
Deep DEEP SOUTH
|

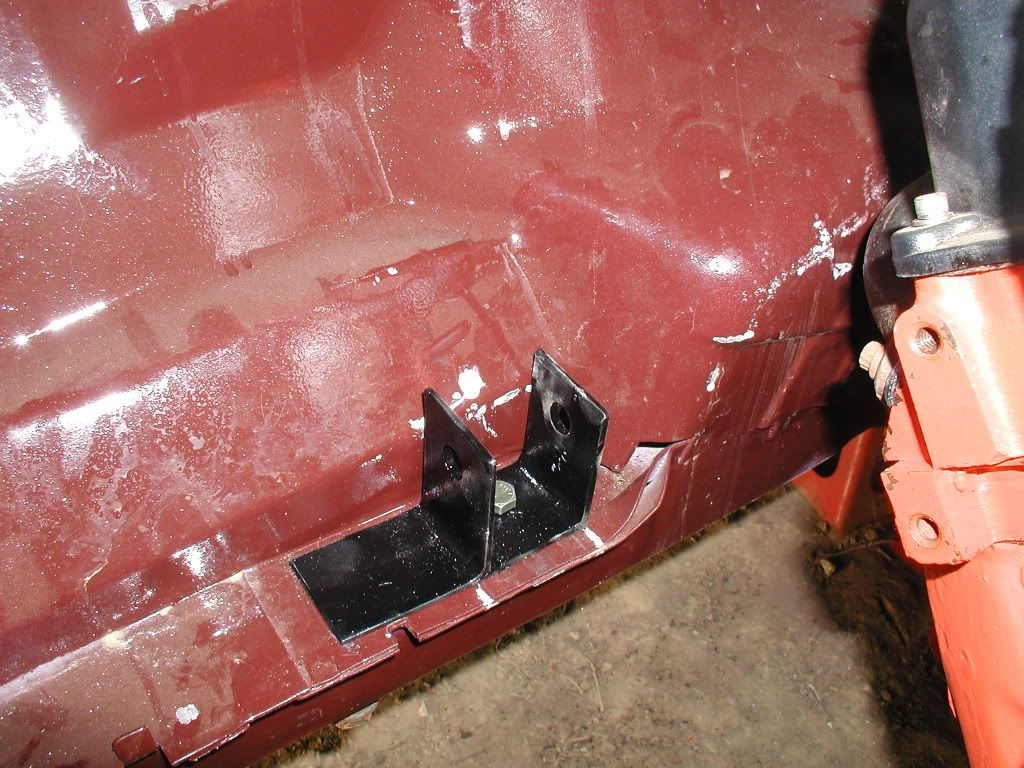

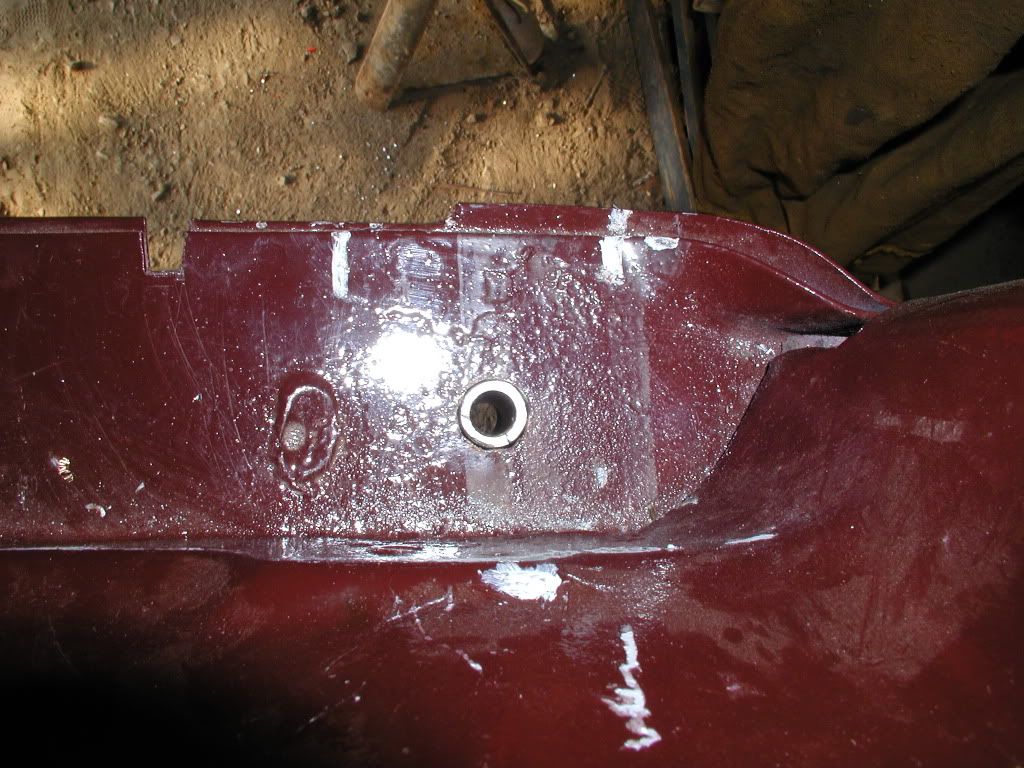

I did it this way: i. Mount tabs welded to plate ii. plate bolted thru rails with crush tubes welded in iii. alum tubes welded to alum plate with the correct ID for the urethane bushes. I prefer doing it this way as the steel sleeve that goes through the bush and locates the mount bolt helps isolate vibration from the engine to the chassis. It make it even a cleaner install when the alum tube in the plate is welded in from behind. It works really well. free photo hosting
Last edited by LAD 524; 02/19/17 09:14 PM.
|
|
|
|
|
